Optical sensor ~ Diffuse - fixed focus

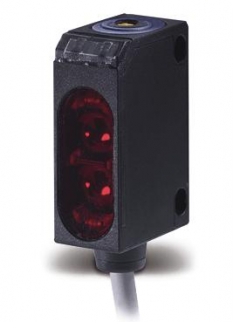

Picture:

Scheme:

Electrical scheme:

Features	Value
Dimensions	37 X 20 X 12 mm
Switching distance Sn [mm]	110
Supply voltage	DC
Supply voltage U[V]	10-30 V DC
Voltage drop U[Ud]	1,5 V
Consumption Io[mA]	30 mA
Max current I[mA]	100 mA
Material housing	ABS plastic
Housing form	Quader
Housing Dimensions L	37 mm
Mechanical protection	IP 67
Connection	2m PVC
Temperature operating range	- 25°C do + 55 °C
Switching frequency [ f ]	500 Hz
Polarity protection	Build in
LED function	Yes
Optics	RAVNA
Function	light/dark switch
Light	red 660 nm
Setting the distance	NO
Response time	1 ms
