~ light/dark switch

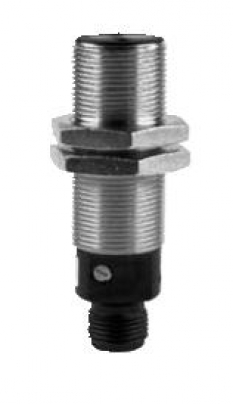

Picture:

Electrical scheme:

Features	Value
Dimensions
Switching distance Sn [mm]
Supply voltage	DC
Supply voltage U[V]	10-30 V DC
Voltage drop U[Ud]	2 V
Consumption Io[mA]	35 mA
Max current I[mA]	200mA
Material housing	ABS plastic
Housing form
Housing Dimensions L
Mechanical protection	IP 65
Connection	M12-4p
Temperature operating range
Switching frequency [ f ]	1000 Hz
Polarity protection	Build in
LED function	Yes
Optics	RAVNA
Light	Infrared 880nm
Setting the distance	Yes
Response time	0,5 ms
Accessories
